CSWX Compact ServoWeld® Integrated Actuators
ServoWeld® CSWX integrated servo spot welding actuator offers high performance in a compact package.

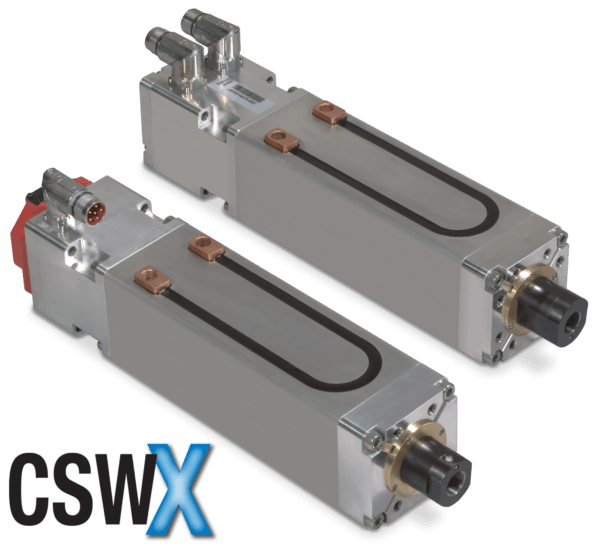

The Compact ServoWeld® Actuator (CSWX) is the latest generation of ServoWeld actuators offering high force capability in a smaller package. Its modular design allows the CSWX to more easily adapt to project variability and supports our global manufacturing strategy. Tolomatic’s ServoWeld family of lighter weight integrated servo motor actuators for resistance spot welding (RSW) provide a cost-effective actuator design and best-in-class performance.
- 30+ million welds in typical welding applications with proper maintenance
- Forces to 4,047 lbf (18 kN)
- Skewed motor windings for minimized motor cogging for high force repeatability
- Standard roller screw with high dynamic load rating
- Water Cooling and Force feedback options
- Compact actuator design
Features & Ordering
Download the CSWX Brochure for full details on features
CSWX Features

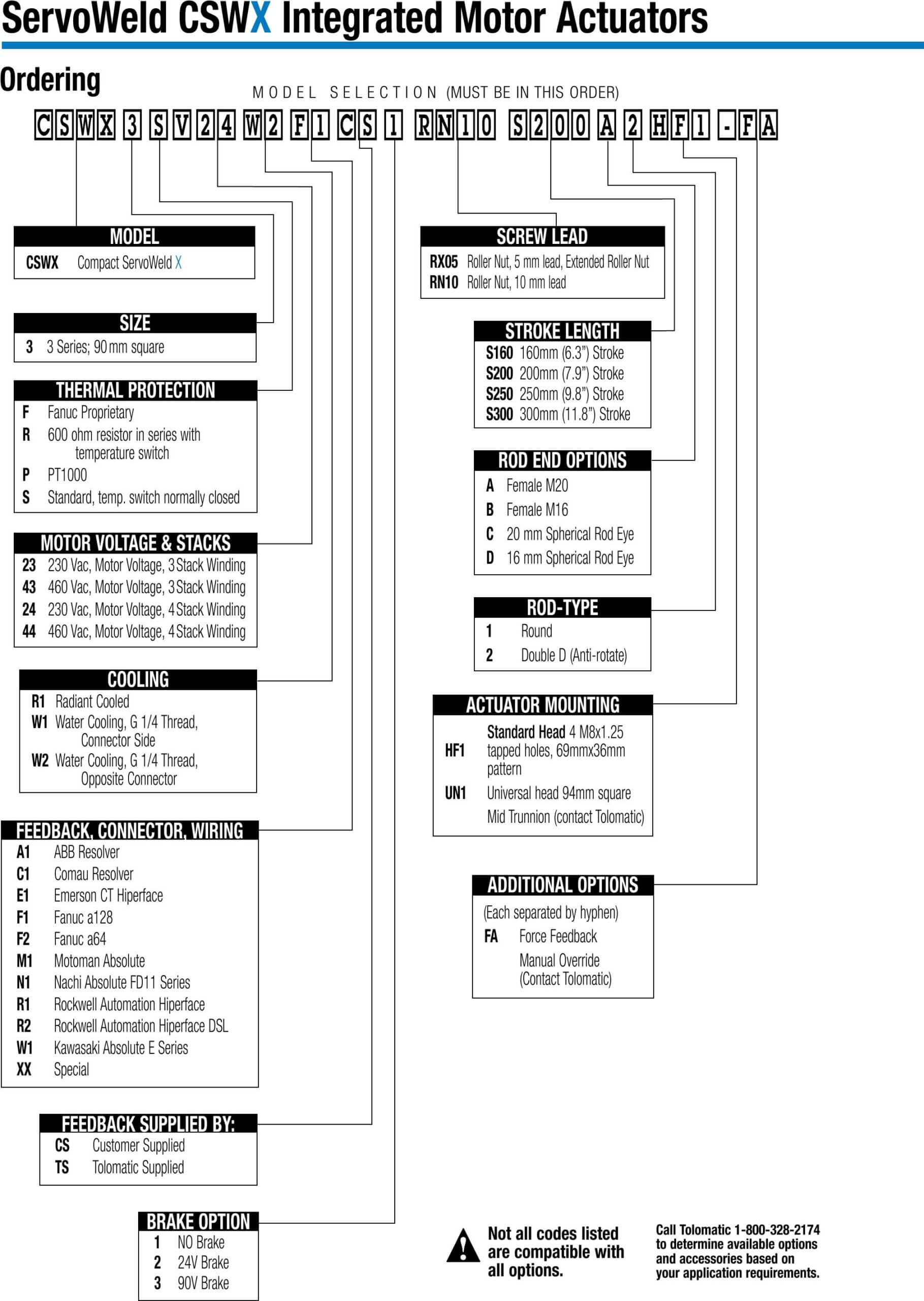

CSWX Ordering

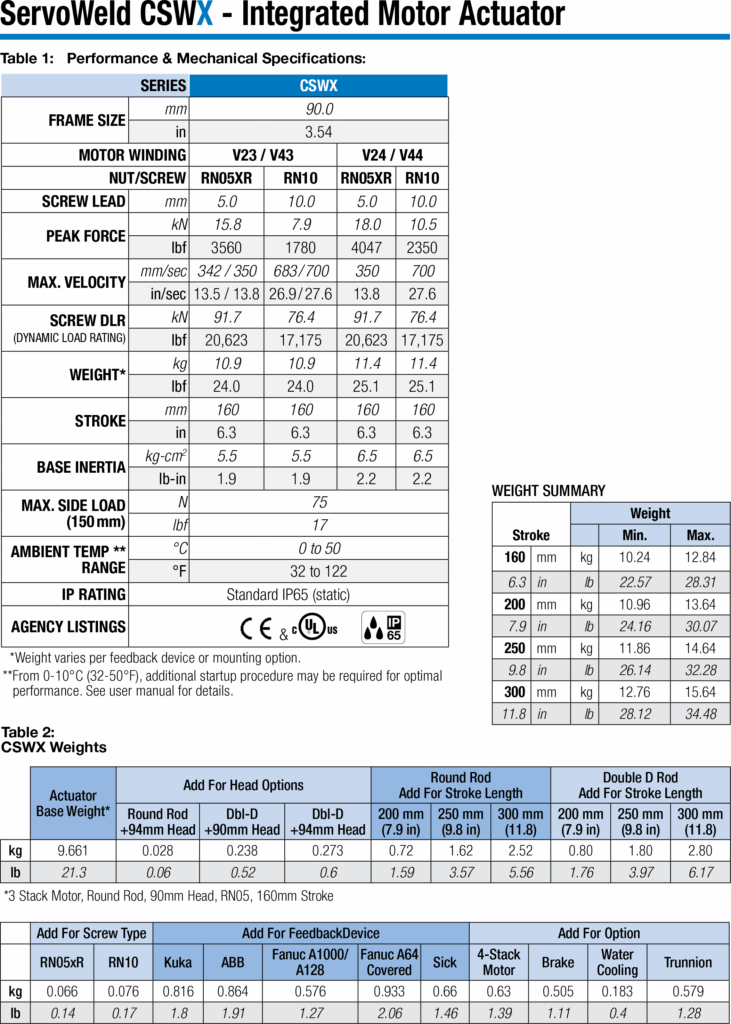

Specifications

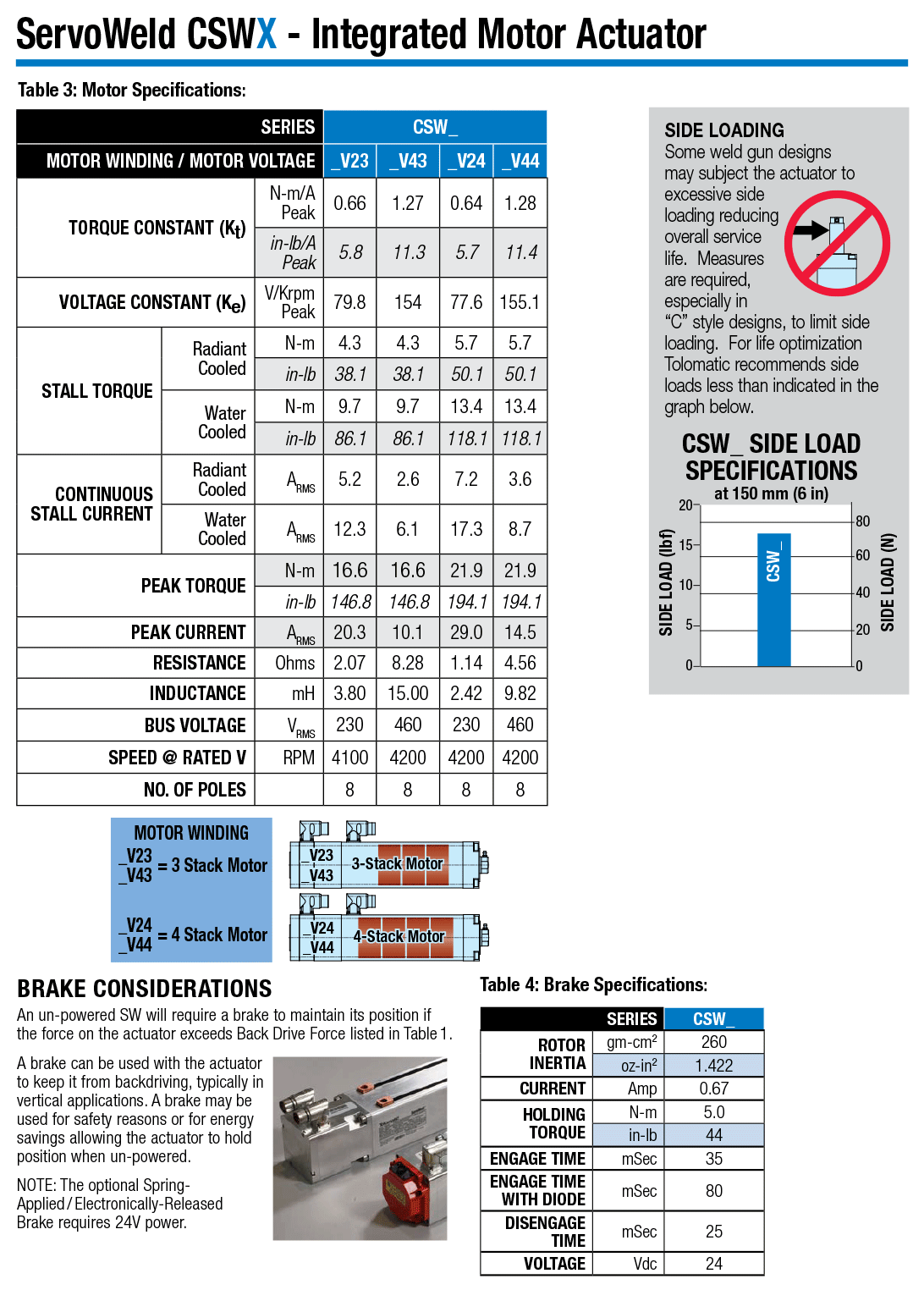

CSWX Motor Specs & Brakes

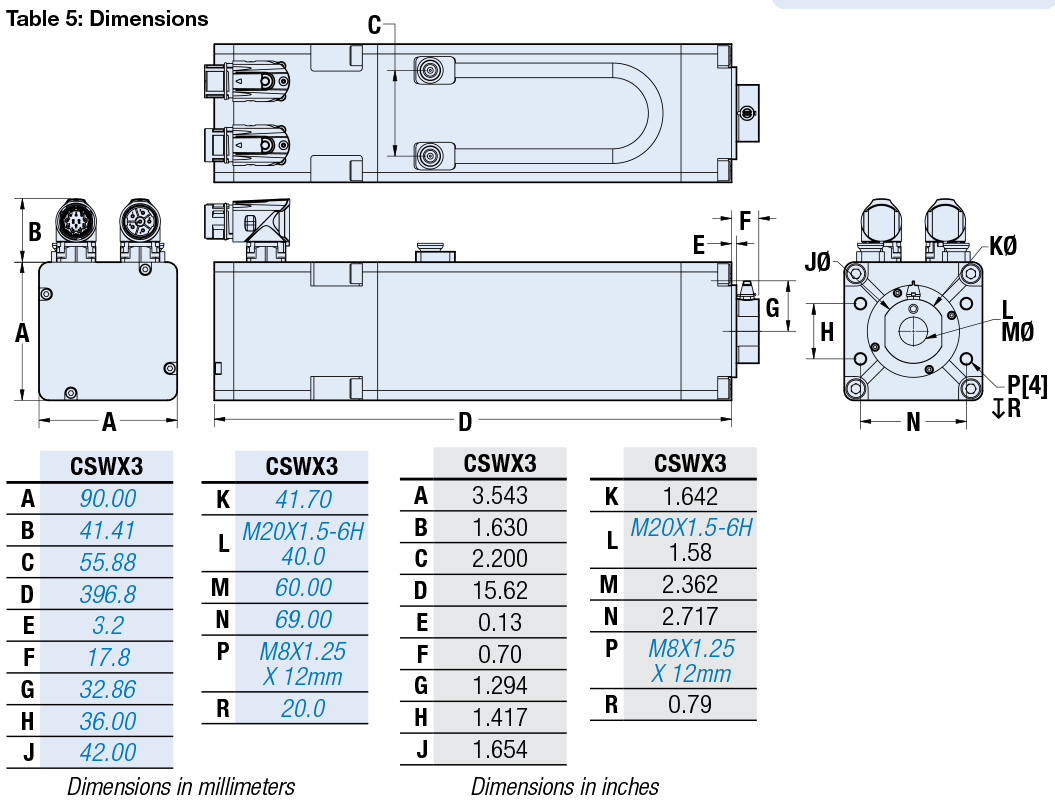

Dimensions

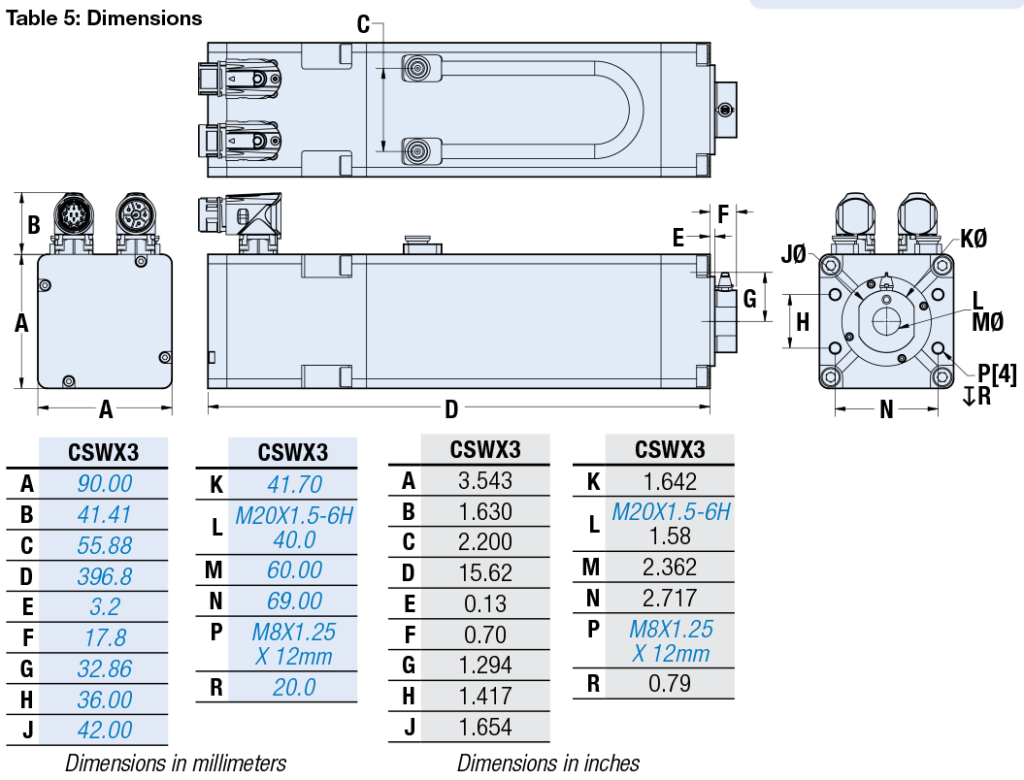

CSW & CSWX Dimensions
Manuals & Part Sheets
Additional Resources
Information Center:
Application Checklists
Catalogs & Brochures
- Unternehmensübersicht (German, Corporate Overview brochure)
- 公司概述 (Chinese, Corporate Overview Brochure)
- ServoWeld® Refurbishment and Remanufacturing Services
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- CSWX Compact ServoWeld Actuator Brochure
- CSWX ServoWeld Actuador Compacto (^ES, Spanish translation, CSWX brochure)
- CSWX Kompakt ServoWeld Schweißantrieb (CSWX Compact Actuator: DE- German Translation)
- CSWX 紧凑型电动缸 ServoWeld 宣传册(CSWX Compact ServoWeld Actuator, br - CN)
- ServoWeld with Integrated Force Sensor, brochure
- ServoWeld mit integriertem Kraftsensor (DE- ServoWeld w/Force Sensor brochure)
- Servicios de reacondicionamiento y refabricación de ServoWeld® (ServoWeld® Refurbishment and Remanufacturing Services-Spanish)
- ServoWeld® Aufarbeitungs- und Wiederaufarbeitungsservices (ServoWeld Refurbishment and Remanufacturing Services brochure, German)
- ServoWeld® 的翻新和再制造服务 (ServoWeld® Refurbishment and Remanufacturing Services-Chinese)
- 带内置式力传感器的 ServoWeld (ServoWeld Force Sensor brochure ^CN)
- Tolomatic Welding Solutions (English)
- Tolomatic Lösungen für Widerstandsschweißen (Tolomatic Welding Solutions; German)
- Automotive Applications Brochure
- Aplicaciounes de la Ind. Automotriz (Auto Appl SP)
- 汽车行业应用手册 Brochure (Chinese: Automotive Applications Brochure)
- All Electric Projection Welding Brochure
- OEM Actuator Solutions Brochure
- Electric Pressing Solutions Brochure
- Restore - ServoWeld Repair Program brochure
- Restore-ServoWeld Repair Program brochure^CN
- RESTORE WIEDERHERSTELLEN (Flyer DE)
- RESTORE (RESTAURAR); (flyer, ES)
Flyers
Terms & Conditions
Success Stories
Challenge: Resistance spot welding (RSW) chassis
Product Family: Electric Rod Style Actuator
Product Used: CSWX
Additional CSWX information

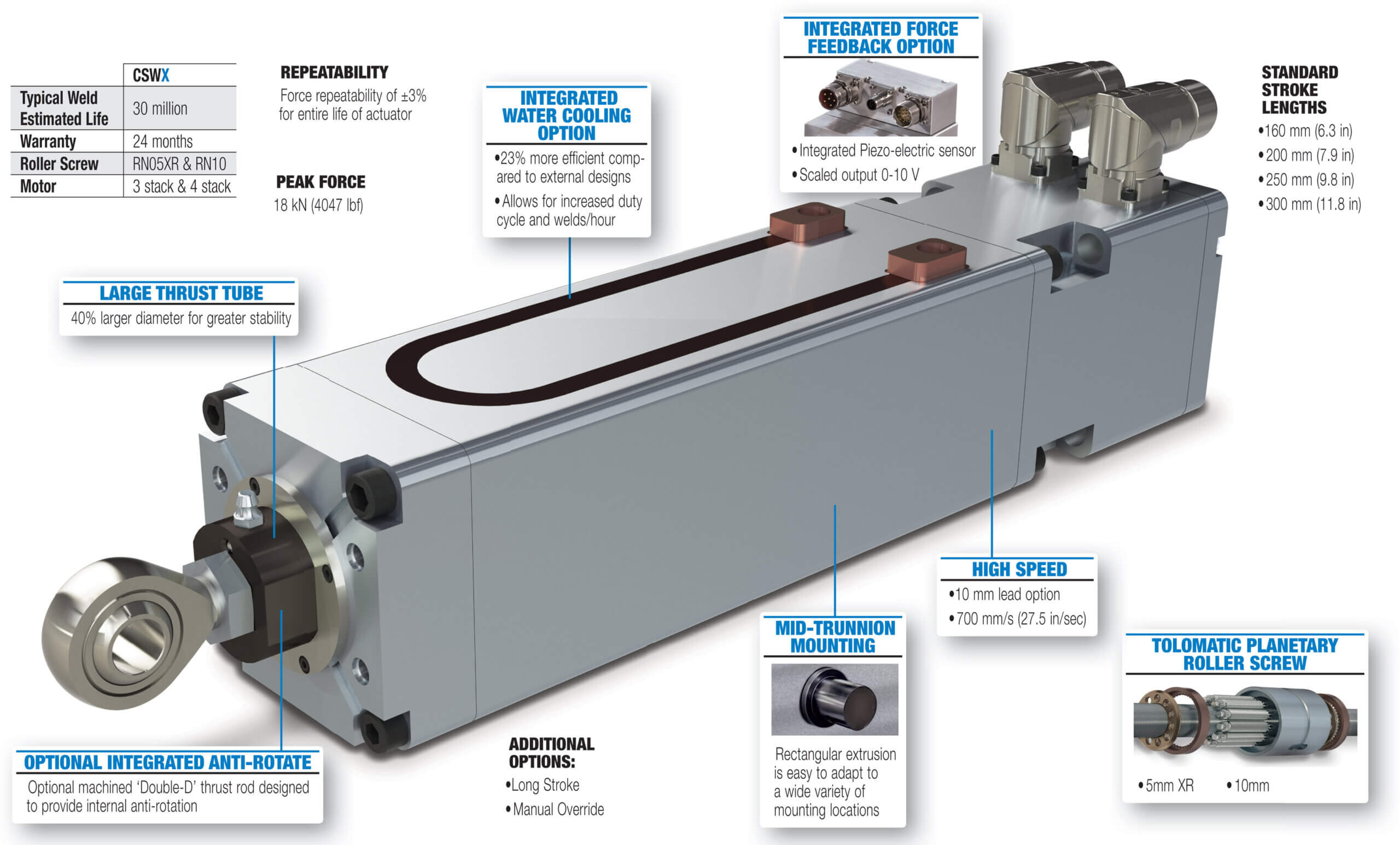

The Compact ServoWeld® Actuator (CSWX) is the latest generation of ServoWeld actuators offering high force capability in a smaller package. Its modular design allows the CSWX to more easily adapt to project variability and supports our global manufacturing strategy. Tolomatic’s ServoWeld family of lighter weight integrated servo motor actuators for resistance spot welding (RSW) provide a cost-effective actuator design and best-in-class performance.
